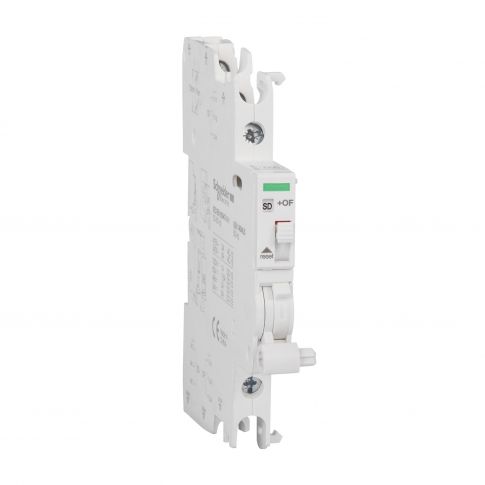

Acti 9 - Auxiliary contact iOF/SD+OF - 2OC - AC/DC - A9A26929
This Acti9 iOF+SD/OF electric auxiliary is a double open/closed or fault indicator contact.
It is dedicated to iC60, iC40, iCV40, iID, iID40, iDPN Vigi, iSW-NA, iC60 & iID products.
It comes with 1 changeover contact indicating the open or closed position (OF).
It provides a remote position open/close and/or fault tripping indication of the associated device.
It is a two-in-one product.
The choice of OF+SD or OF+OF contact is made via the selector switch on front face.
There is a mechanical state indicator and a test function button on the front face.
The Ue rated operational voltage is 24VAC to 415VAC or 24VDC to 130VDC.
The operating frequency is 50Hz or 60Hz.
The Ie rated operational current is 6A under 24VDC, 2A under 48VDC, 1.5A under 60VDC, 1A under 130VDC.
The Ie rated operational current is 6A under 24VAC to 240VAC, 3A under 415VAC.
The width in 9mm pitches is 1.
The product color is white (RAL9003).
The dimensions are (W) 9mm x (H) 86mm x (D) 73mm.
Product weight is 32g.
The degree of protection is IP20 at terminals and IP40 in enclosure.
The operating temperature is -35°C to +70°C.
The storage temperature is -40°C to +85°C.
This product complies with EN/IEC 60947-5-1 standard.
| Attribute | Value |
|---|---|
| SKU | A9A26929 |
| ambient air temperature for storage | -40-85 °C |
| ambient air temperature for operation | -35-70 °C |
| range of product | iC60, iDPN Vigi, iID, ARA, iSW-NA, RCA |
| product or component type | Miniature Circuit Breaker |
| net weight | 43 g |
| mounting mode | fixed |
| standards | EN/IEC 60947-5-1 |
| tropicalisation | 2 conforming to EN/IEC 60947-5-1 |
| device short name | iOF/SD+OF |
| range | Aksesoris |
| wire stripping length | 10 mm |
| product compatibility | single terminal, iC60, iDPN Vigi, iID, iSW-NA, ARA, double terminal, RCA |
| range compatibility | Acti 9 iC60, Acti 9 iID, Acti 9 iSW-NA, Acti 9 iC40, Acti 9 iDPN Vigi, Acti 9 iC65, Acti 9 iC60 RCBO, Acti 9 ARA, Acti 9 RCA, Acti 9 iDPN (China version) |
| [Uimp] rated impulse withstand voltage | 4 kV |
| connections - terminals | screw clamp terminal2 cable(s) 2.5-2.5 mm² - rigid, screw clamp terminal2 cable(s) 1.5-1.5 mm² - flexible with ferrule, screw clamp terminal1 cable(s) 0.5-2.5 mm² - flexible, screw clamp terminal1 cable(s) 1-4 mm² - rigid |
| height | 90 mm |
| mounting support | DIN rail |
| compatibility code | iOF/SD+OF |
| width | 9 mm |
| depth | 73 mm |
| [In] rated current | 1-1 A at 130 V DC, 1.5-1.5 A at 60 V DC, 2-2 A at 48 V DC, 3-3 A at 415 V AC - 50/60 Hz, 6-6 A at 240 V AC - 50/60 Hz, 6-6 A at 24 V DC |
| 9 mm pitches | 1 |
| colour | white |
| tightening torque | 1-1 N.m |
| local signalling | mechanical indicator |
| market segment | small commercial, residential |
| [Ui] rated insulation voltage | 500 V |
| signal contacts composition | 2 C/O |
