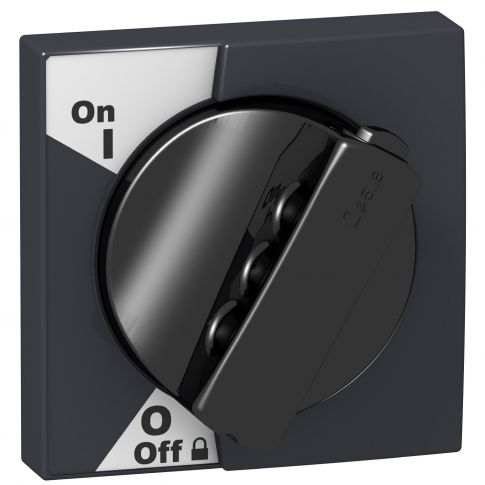

Acti 9 Rotary handle - for iC60 - black handle - A9A27005
This Acti 9 rotary handle for front or side-mounted control is black.
This mounting accessory is suitable for iC60 (2P, 3P, 4P), iSW (2P, 3P, 4P), iC60+vigi (2P, 3P, 4P), iID, iSW-NA.
The rotary handle is fixed on the front or the side of the enclosure.
It prevents the door from opening when the device is in On position but it can desactivated by adaptation.
It is a set of 1 device.
The front-mounted is possible on door or faceplate.
It can be padlocked when the device is in the Open position or Closed position with adaptation.
A pushbutton for iID test is available in the front face of the rotary handle.
The degree of protection is IP55.
The 5mm to 8mm diameter padlock is not supplied with the device.
The dimensions of the front face of the rotary handle are (W) 75mm x (H) 75mm.
The operating temperature is -25°C to + 55°C.
| Attribute | Value |
|---|---|
| SKU | A9A27005 |
| rotary handle padlocking | padlock in OFF position, 3 padlocks max, lockable in O position |
| rotary handle mounting location | front, lateral |
| range of product | iC60, iID, iSW 40...125, iSW-NA |
| product or component type | Miniature Circuit Breaker |
| mounting mode | fixed, drawout |
| range | Aksesoris |
| compatibility code | rotary handle |
| IP degree of protection | IP55 |
| market segment | small commercial, residential |
| accessory / separate part type | control accessories |
| rotary handle mounting style | extended |
| handle colour | black |
