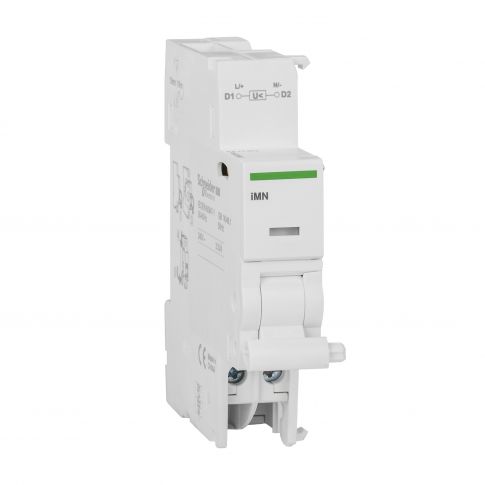

Acti 9 voltage release - iMN - tripping unit - 220..240 VAC - A9A26960
This Acti9 iMN electrical auxiliary is an instantaneous undervoltage release.
It is dedicated to Acti9 iC60, iID, iDPN Vigi, iSW-NA.
It prevents device closing again until its input voltage has been restored.
Emergency stoppage by normally open pushbutton.
It ensures the safety of power supply circuits for several machines by preventing uncontrolled restarting.
The width in 9mm pitches is 2.
It trips the device with which it is combined when its input voltage decreases (between 70% and 35% of Un).
The Uc control circuit voltage is 220…240VAC.
The Ue rated operational voltage is 200VAC to 240VAC.
The operating frequency is 50Hz or 60Hz.
It can be mounted on a DIN rail for modular installation.
The product color is white (RAL9003).
The operating temperature is -25°C to + 50°C.
The storage temperature is -40°C to + 85°C.
This product complies with IEC/EN 60947-5-1 standards.
| Attribute | Value |
|---|---|
| SKU | A9A26960 |
| relative humidity | 95-95 % at 55-55 °C |
| ambient air temperature for storage | -40-85 °C |
| ambient air temperature for operation | -25-50 °C |
| range of product | iC60, iDPN Vigi, iID, iSW-NA |
| product or component type | Miniature Circuit Breaker |
| mounting mode | clip-on |
| standards | EN/IEC 60947-5-1 |
| tropicalisation | 2 conforming to EN/IEC 60947-5-1 |
| device short name | iMN |
| range | Aksesoris |
| product compatibility | single terminal, iC60, iDPN Vigi, iID, iSW-NA, ARA, double terminal, RCA |
| [Uc] control circuit voltage | 220...240 V AC 50/60 Hz |
| range compatibility | Acti 9 iID, Acti 9 iSW-NA, Acti 9 iC40, Acti 9 iDPN Vigi, Acti 9 iC65, Acti 9 ARA, Acti 9 RCA, Acti 9 iDPN (China version), Acti 9 iC60 double terminals miniature circuit breaker |
| connections - terminals | clamp terminal - 1 cable(s) 8-8 mm² - rigid, clamp terminal - 2 cable(s) 2.7-2.7 mm² - rigid, clamp terminal - 1 cable(s) 6-6 mm² - flexible, clamp terminal - 2 cable(s) 2.7-2.7 mm² - flexible with cable end |
| mounting support | DIN rail |
| compatibility code | iMN |
| width | 18 mm |
| 9 mm pitches | 2 |
| colour | white |
| tightening torque | 1-1 N.m |
| control type | standard |
| local signalling | action indicator |
| market segment | small commercial, residential |
