Schneider Electric

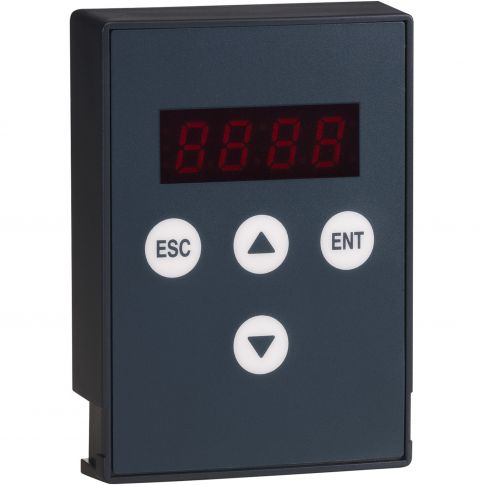

Altistart 22 remote terminal - ATS22 - for soft starter for asynchronous motor - IP54 - VW3G22101

In stock
SKU
VW3G22101
40%
Special Price Rp 2.387.896 Regular Price Rp 3.979.827
Details

This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262.

The analogue output module provides 2 outputs with 11bit + sign and 12bit resolution.

It is an output module with a rated supply voltage of 24V DC and a current consumption of 70mA at 24V DC via external supply full load.

This product is capable of controlling variable speed drives or any device equipped with a current or voltage input.

There is an insulation between output and supply at 1500V AC, output and internal logic at 500V AC.

It is furnished with removable screw terminal for electrical connection with 5.08mm pitch adjustment for outputs.

It is an IP20 rated product.

Its dimensions are 23.6mm (Width) x 70mm (Depth) x 90mm (Height).

It weighs 0.115kg.

This product is certified by CE.

It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards.

This module is compatible with Modicon M262, Modicon M241, Modicon M251 and Modicon M221 logic controller.

It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount.

Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism.

A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers.

Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.

More Information
More Information
Attribute Value
SKU VW3G22101
accessory / separate part designation remote terminal
range of product Altistart 22
product or component type Soft Starter & Variable Speed Drive
net weight 0.25 kg
range Aksesoris
product compatibility ATS22
accessory / separate part category control accessories
accessory / separate part destination soft starter for asynchronous motor
accessory dimension 50 x 15 x 70 mm
IP degree of protection IP54
accessory / separate part type remote terminal
