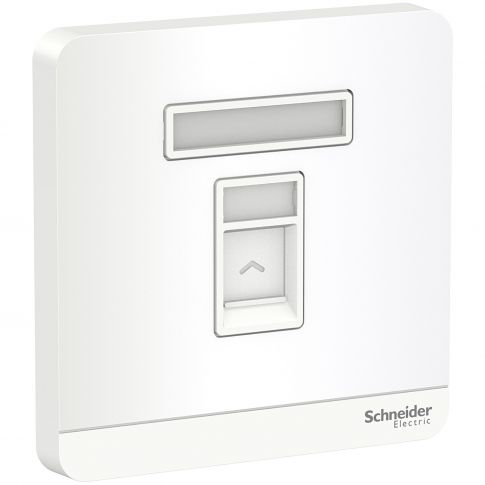

AvatarOn data socket, RJ45, cat6e, shuttered, White - E8331RJS6_WE
Schneider Electric AvatarOn RJ45 6e data socket E8331RJS6_WE in color white is a complete product for data communication.
Its matching mounting box can be recessed into the surface of the wall with flush type.
Designed with a shutter, this data socket is dedicated to protecting your safety, especially your children.
This data socket comes with 1 gang.
What's more, it well satisfied the standard of ASTMD4566-98, TIA/EIA-568-B.2-1.
It is 86 mm in width.
86 mm in height.
31 mm in depth.
AvatarOn offers six fashionable, classic appearances, letting your home's details change, just like the changes in your colorful life.
Unique, patented technology and exquisite manufacturing ensure comfortable operation, and the easy-mount design allows you to change the faceplates as quickly and easily as you wish.
| Attribute | Value |
|---|---|
| SKU | E8331RJS6_WE |
| range | AvatarOn |
| product or component type | Saklar, Stop Kontak & Aksesoris |
| number of gangs | 1 gang |
| colour tint | white |
| IP degree of protection | IP20 |
| maximum ambient air temperature for operation | 35 °C |
| device mounting | flush, surface |
| material | polycarbonate: plastic part |
| depth | 31 mm |
| height | 86 mm |
| width | 86 mm |
| device presentation | complete product |
| standards | ASTMD4566-98, TIA/EIA-568-B.2-1 |
| device application | communication |
| relative humidity | 0-95 % |
| environmental characteristic | no UV resistant |
| contact resistance | 1 µOhm |
| contacts material | contact: phosphor bronze with gold plating, housing: PC |
| communication network category | data: 6e |
| data socket type | RJ45 |
| AWG gauge | AWG 26...AWG 22 (4 twisted pair cables) |
| socket additional information | shuttered |
| minimum return loss | 23 dB |
| dielectric strength | 1000 V for 60 s at 60 Hz |
| rated current | 1.5 A |
